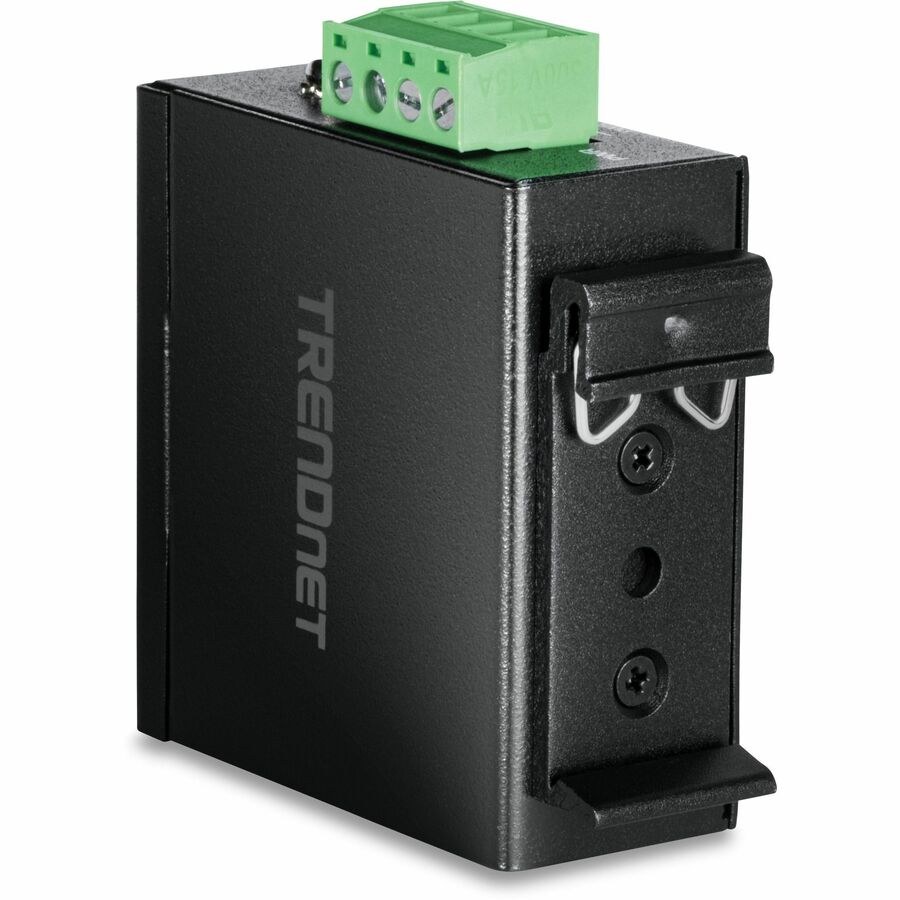

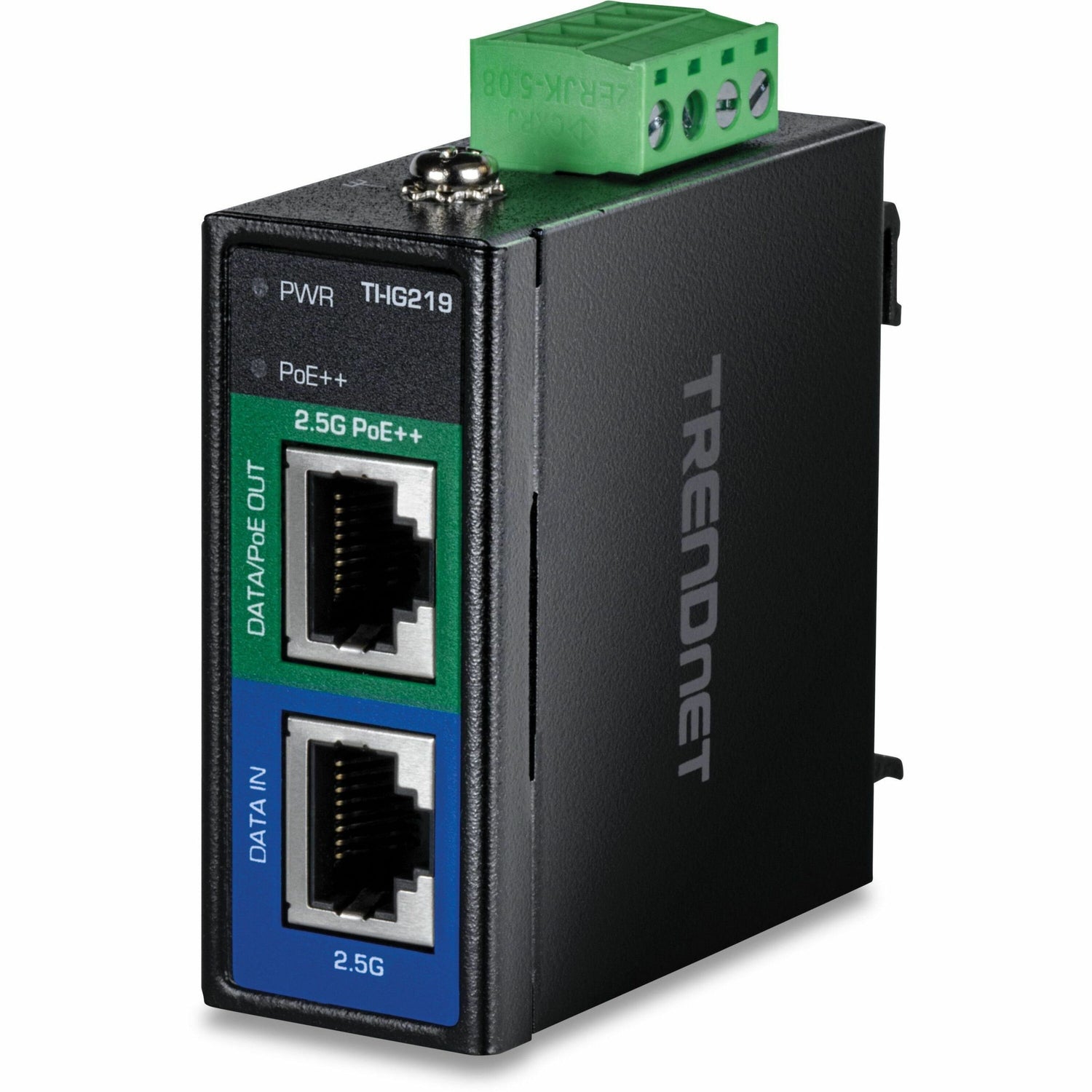

TRENDnet Industrial 2.5G PoE++ Injector

TRENDnet's Industrial 2.5G PoE++ Injector, model TI-IG219, allows users to add PoE++ power to a non-PoE 2.5G switch. Connect the 2.5G PoE++ injector to a non-PoE switch, and then run an Ethernet cable up to 100 meters (328 ft.) to network a PoE, PoE+, or PoE++ device. This multi-gig industrial PoE++ injector supplies up to 95W of power to a PoE device. The fanless design conveniently eliminates operating noise and lowers energy consumption. The 2.5G PoE++ injector is equipped with an IP50-rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within an extreme temperature range of -40° - 75° C (-40° - 167° F) for harsh industrial environments.

PoE++

This multi-gig PoE++ injector supplies up to 95W of power to a PoE device.

2.5G Ports

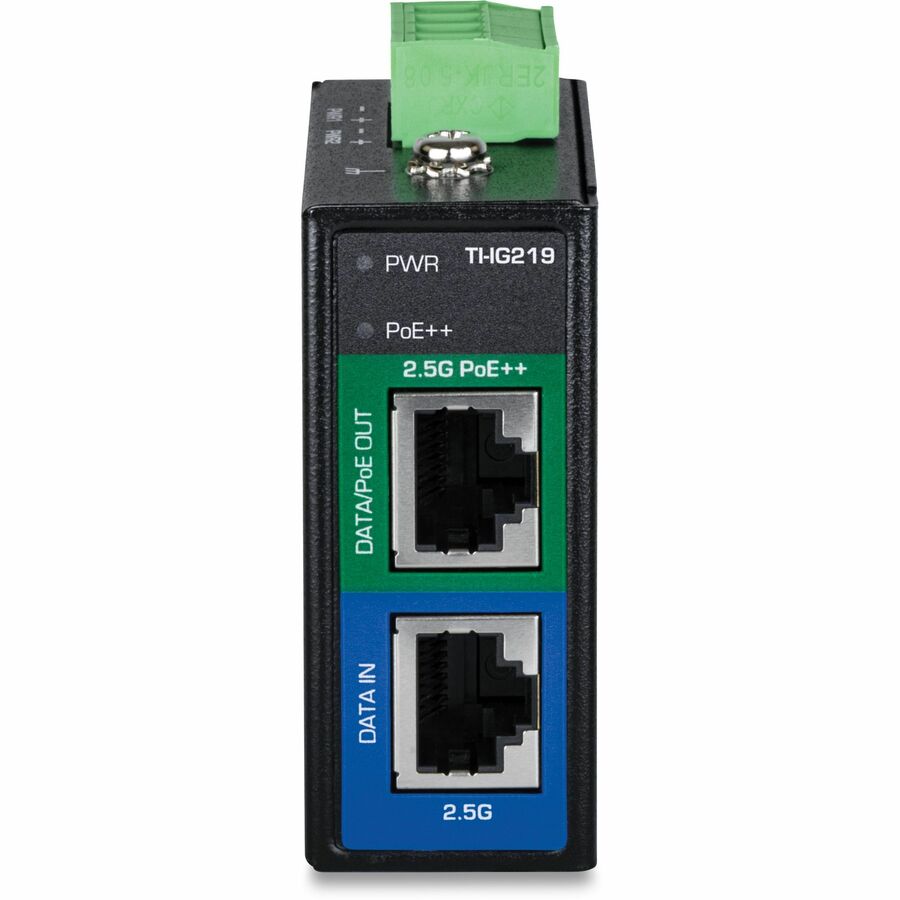

Features a high-speed 2.5G port (data in) and a high-speed 2.5G PoE++ port (data + PoE out).

Industrial Design

IP50-rated metal enclosure with a high degree of vibration and shock resistance, and an extreme operating temperature range of -40° - 75° C (-40° - 167° F).

PoE++

This industrial 802.3bt PoE injector supplies up to 95W of power to PoE (IEEE 802.3af), PoE+ (IEEE 802.3at), or PoE++ (IEEE 802.3bt) devices

Industrial Design

Equipped with an IP50-rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within an extreme temperature range of -40° - 75° C (-40° - 167° F) for industrial environments

2.5G Port

1 x 2.5G port (data in) and 1 x 2.5G PoE++ port (data + PoE out)

PoE Distance

Provides a PoE network connection up to 100m (328 ft.) away

LED Indicators

LED indicators on the industrial PoE injector conveys power and PoE connectivity

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Grounding Point

Grounding point protects equipment from external electrical surges

Fanless Design

Fanless design on the injector conveniently eliminates operating noise and lowers energy consumption

Housing Design

Compact and sturdy metal housing for installation flexibility

• 1 x 2.5G PoE++ port (Data + PoE out)
• 1 x 2.5G port (Data in)
• 95W PoE power budget
• Supports PoE (15.4W), PoE+ (30W), and PoE++ (95W) devices
• Uses IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt industry PoE standards for greater device interoperability
• Network a PoE device located up to 100m (328 ft.) away
• Fanless design eliminates operating noise and lowers energy consumption
• Extreme operating temperature range - 40° - 75° C (-40° - 167° F)

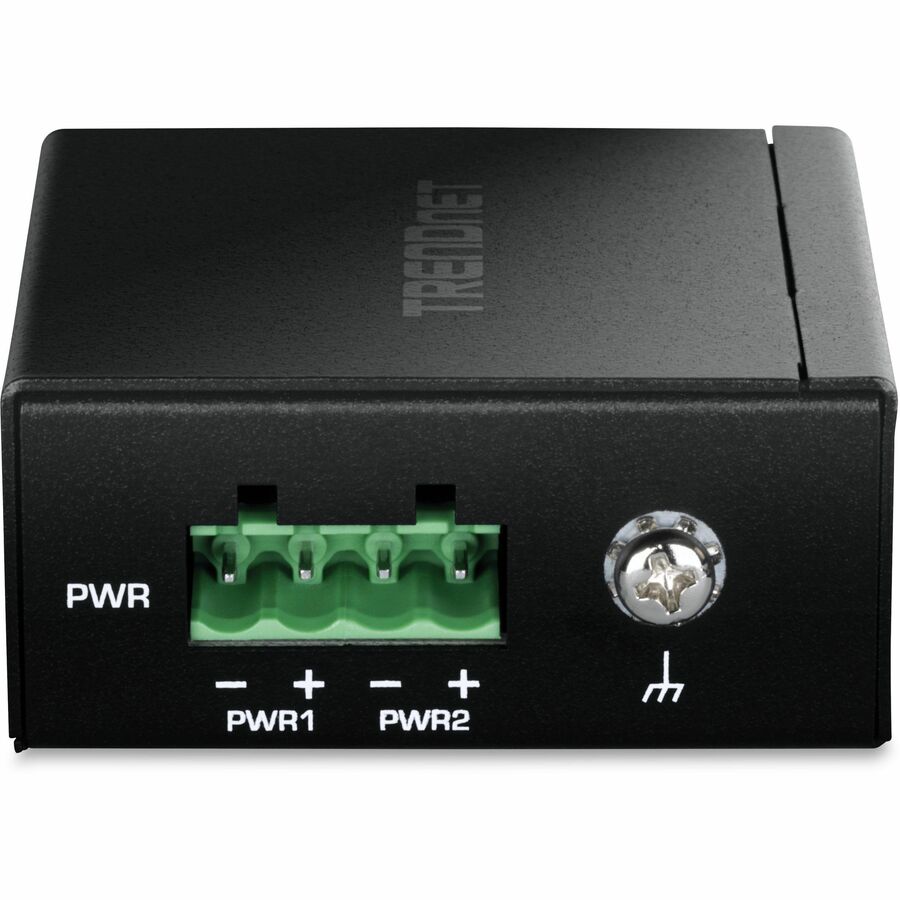

• Redundant power inputs with overload current protection

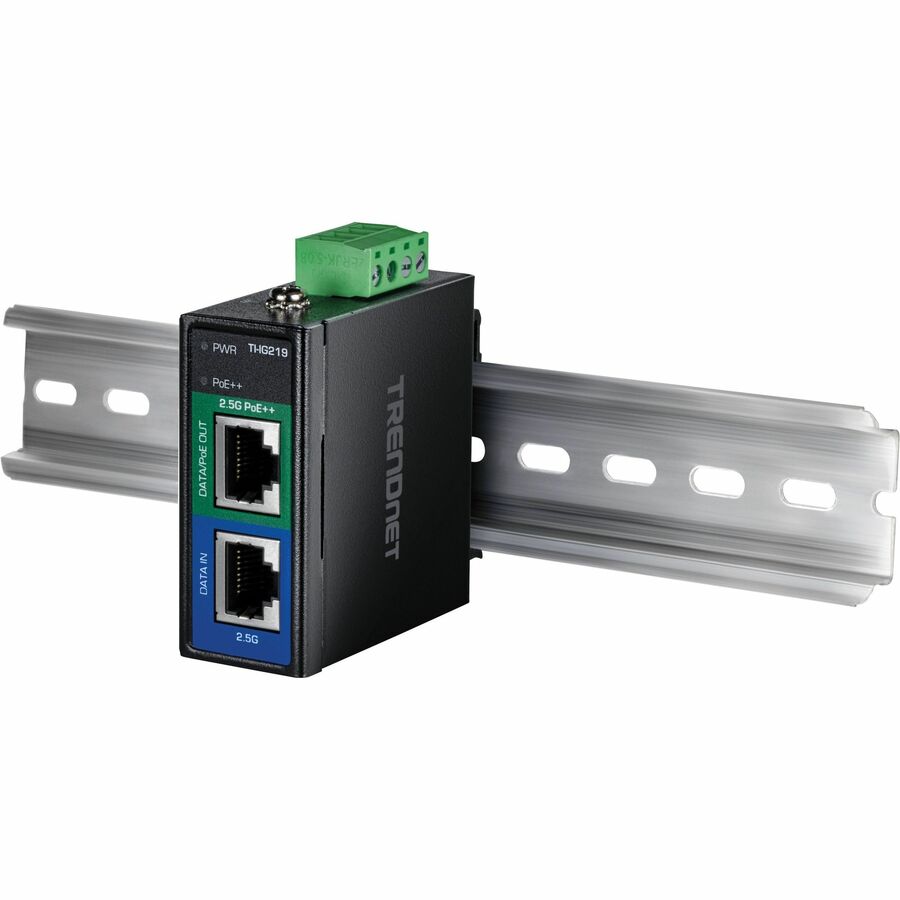

• Includes DIN-Rail mount and wall mount
• Power supply sold separately (model: TI-S15052)
• NDAA / TAA compliant (U.S. and Canada only)
