Omnitron Systems OmniConverter GHPoEBT/S Transceiver/Media Converter

The OmniConverter GHPoEBT/S is a multi-port Hign-Power PoE Ethernet media converters that feature one or two fiber ports and one or two 10/100/000 RJ-45 copper Power-over-Ethernet ports.

The GHPoEBT/S is an IEEE 802.3bt media converter featuring 60 and 100 watts per RJ-45 port. The GHPoEBT/S are ideal for outdoor PTZ (pan-tilt-zoom) cameras with heaters and blowers, multi-stream wireless access points and small cells installations. All OmniConverter models support frame sizes up to 10,240 bytes.

OmniConverter PoE media converters provide network distance extension with fiber optic cabling and function as a PoE injector.

Models with two Small Form Pluggable (SFP) fiber receptacles support redundant fiber uplinks for critical applications that require protection and sub 50ms restoration in the event of a fiber failure. The second fiber port can also be used to cascade multiple media converters, or as another switch port.

Configurable features include link modes and a PoE power reset function that enables a PD device to be re-initialized remotely, eliminating the need for costly truck rolls to remote PD sites. When a problem with a PD is identified, the fiber port on a managed switch can be shut down or disconnected, triggering the PoE power reset function on the OmniConverter. The PoE power to the PD is disabled for 2 seconds when a loss of receive fiber link is detected by the OmniConverter.

Link modes can be configured to propagate loss-of-link faults to managed devices, immediately notifying administrators of network outages.

The OmniConverter PoE media converters are available with fixed fiber ST, SC, and LC connectors or Small Form Pluggable (SFP) transceiver receptacles. Fiber ports support multimode or single-mode and dual fiber or single fiber. SFP models support 100Mbps and 1000Mbps standard, CWDM and DWDM transceivers in a variety of distances and fiber types.

The compact standalone OmniConverter media converters can be tabletop mounted, wall-mounted, or DIN-rail mounted using an optional DIN-rail mounting kit. They can also be mounted on a 1U 19" rack-mount shelf. They are available with DC input power via terminal connectors or external 100 to 240 VAC power adapters.

• IEEE 802.3bt compliant 60W and 100W media converters
• The GHPoEBT/S supports 60W and 100W per IEEE 802.3bt on one or two RJ-45 copper ports
• 10/100/1000BASE-T copper to 1000BASE-X or 100BASE-X fiber media converter
• Supports 100BASE-X or 1000BASE-X standard, CWDM and DWDM SFP transceivers
• Supports frame sizes up to 10,240 bytes

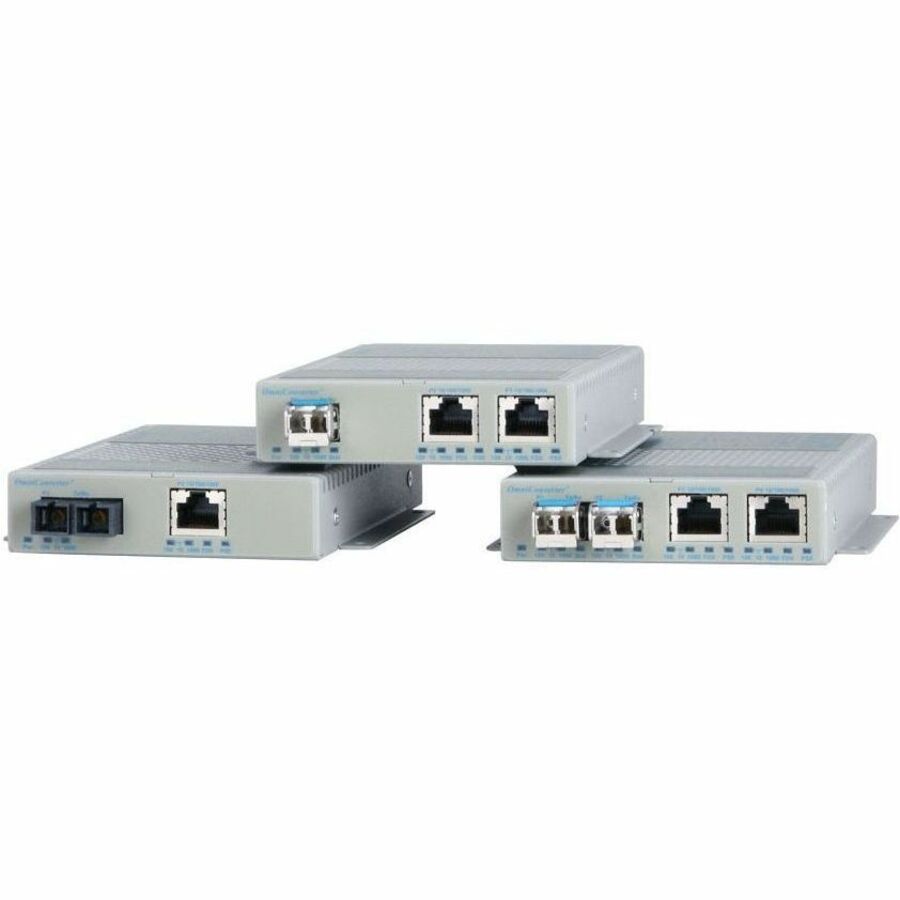

• Multiple port configurations: 2 Port Device: 1 Fiber + 1 RJ-45-3 Port Device: 2 Fiber + 1 RJ-45-3 Port Device: 1 Fiber + 2 RJ-45-4 Port Device: 2 Fiber + 2 RJ-45
• Dual fiber models support redundant fiber link protection
• Configurable PoE power reset
• Available in AC and DC models
• Integrated wall mount brackets
