Taoglas Saucer Antenna

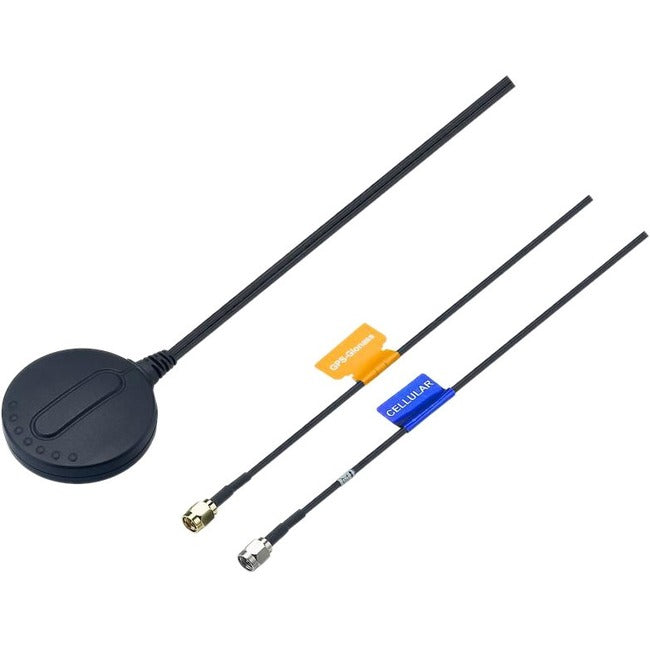

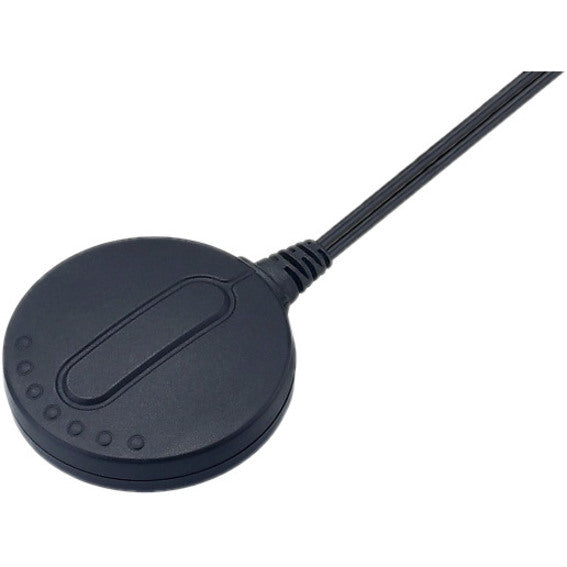

The MA303 SAUCER antenna is a combination small form factor high performance GPS/GLONASS and 2G/3G Cellular GSM/GPRS/CDMA/ PCS/DCS/ WCDMA/UMTS antenna to simplify remote monitoring and fleet management worldwide. It comes with magnetic mount as standard. An internal O-ring meets IP-65 waterproof standards. With the strongest GPS/GLONASS and Cellular antenna design team in the industry and rigorous testing Taoglas offers guaranteed performance with your system and your environment. A front end SAW helps prevent LNA compression and burn out from nearby high power wireless transmissions. It also reduces radiated spurious emission failures in certification. An integrated strain resist helps prevent cable damage from accidental tension on the cable. The standard MA303 version comes with 1 metres RG174 cable and SMA(M) connectors for both GPS/GLONASS and Cellular feeds. Cables and connectors are customizable upon request. Due to typical RF losses, 1 metre cable length is optimal, it is not recommended to use longer than 3 metre cables. Contact your regional Taoglas sales office for more details.

• RoHS Compliant
• 58.15mm x 56.2mm x 16.8mm
• 1 meter RG174 SMA(M)
• Magnetic Mounted
• Low Profile, Robust and Stylish Design
• GSM/GPRS/CDMA/PCS/DCS/UMTS/HSPA
• GPS/GLONASS - High gain LNA up to 31dB
• Cellular 2G/3G - 850/900/1800/1900/2100 MHz
• IP65 - Water Resistant
