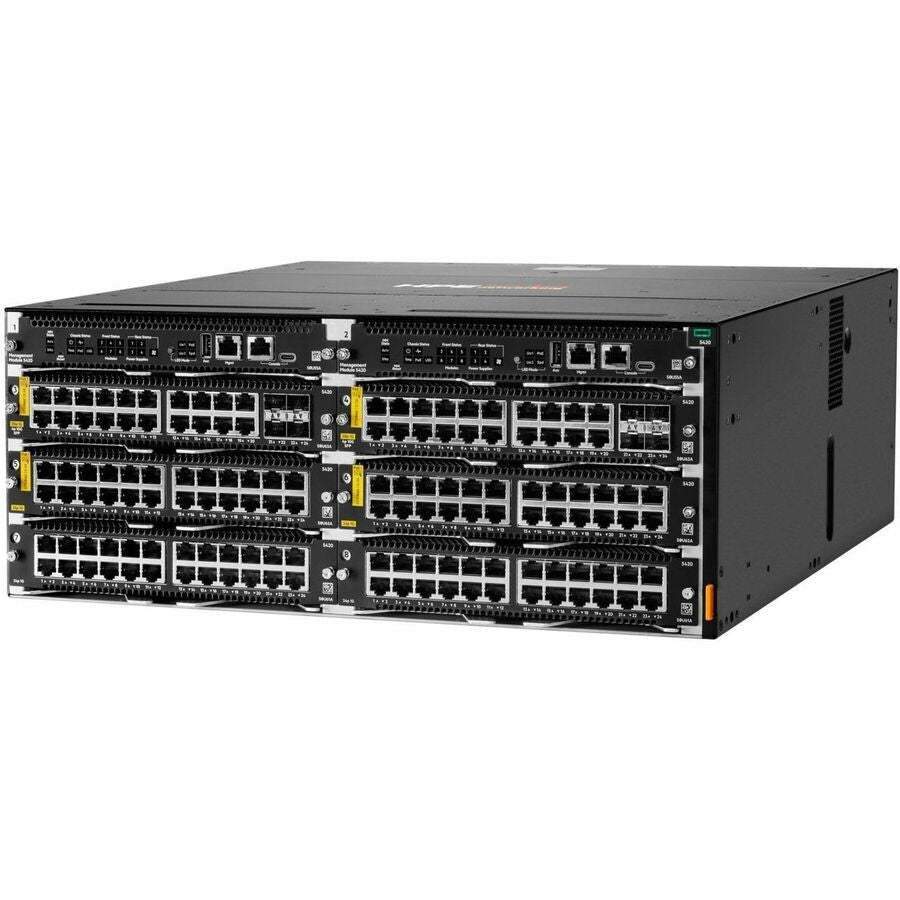

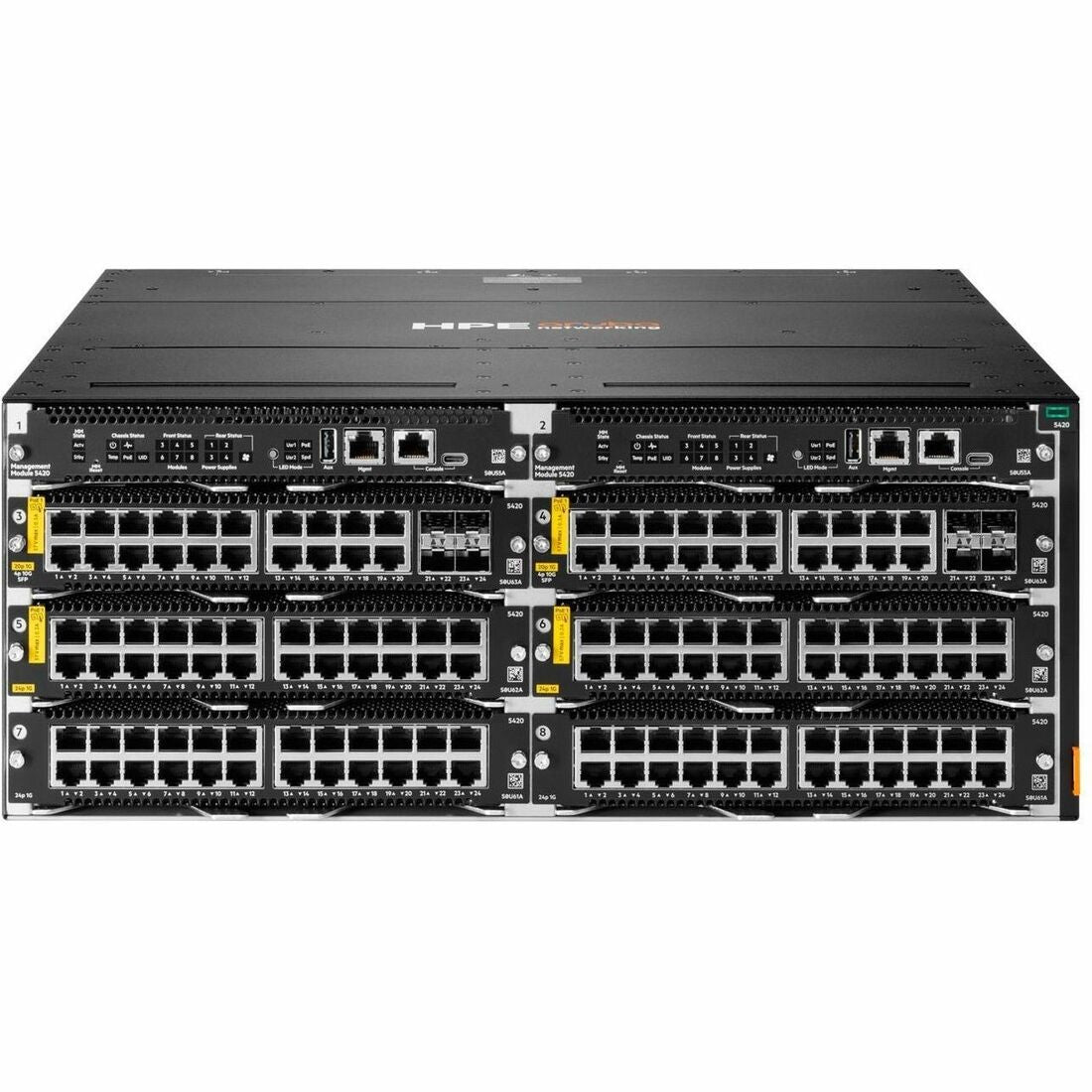

Aruba CX 5420 Switch Chassis

Features

Maximize your HPE Aruba Networking CX 5420 Switch Series

What's New

• Powerful, modular, intelligent Layer 3 switch chassis with BGP, VSX, and OSPF with robust quality of service (QoS).
• Flexibility with 6 half-width modules that allow growth when needed and support for port diversity in a condensed 4RU chassis with redundant MM and PSU.
• High performance switching with up to 960 Gbps using 714 Mpps, built-in high availability with HPE Aruba Networking Virtual Switching Extension (VSX) Live Upgrade and Always-On PoE.
• Simplified operations with the common HPE Aruba Networking CX Switch Operating System (AOS-CX) used across the CX portfolio delivering a more consistent, more efficient operator experience.
• Easy to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, with easy-to-use web GUI or industry-standard CLI.
• Automated, unified role-based policies for users, Internet of Things (IoT) and devices with HPE Aruba Networking Dynamic Segmentation and intelligent monitoring, visibility, and remediation with NAE.

Future-ready with Superior Performance

• The HPE Aruba Networking CX 5420 Switch Series use the latest Gen7 ASICs, delivering very low latency, increased packet buffering, and adaptive power consumption. All switching and routing are wire-speed to meet the demands of bandwidth-intensive applications today and in the future.
• The CX 5420 switch is a compact 6 slot (4 RU) supporting a choice of line cards and redundant, half-width management modules that seamlessly supports Wi-Fi 6 and IoT with Smart Rate multi-gigabit and 90W PoE ports.

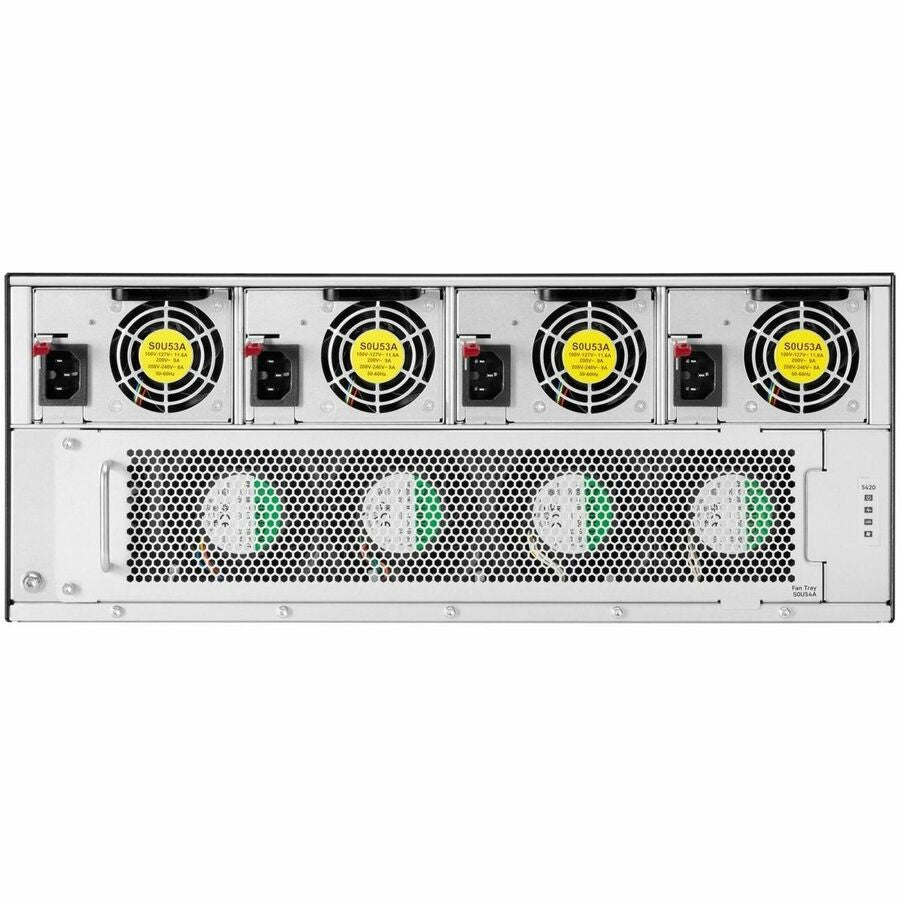

• High availability with HPE Aruba Networking Virtual Switching Extension (VSX) Live Upgrade provides high availability, non-disruptive fast upgrades and simplified management, supporting redundant power supplies and N+1 redundant fans.
• The series provides security-first networking with MACsec1 capable line card modules delivering the enterprise-grade performance and security needs for small and medium campus, branch enterprise networks.

• Can rapidly increase network capacity with minimal effort
• Can work as layer 3 routing for scalable network design
• Rack mounting enables you to organize wires & secure cables for professional installation
• Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
