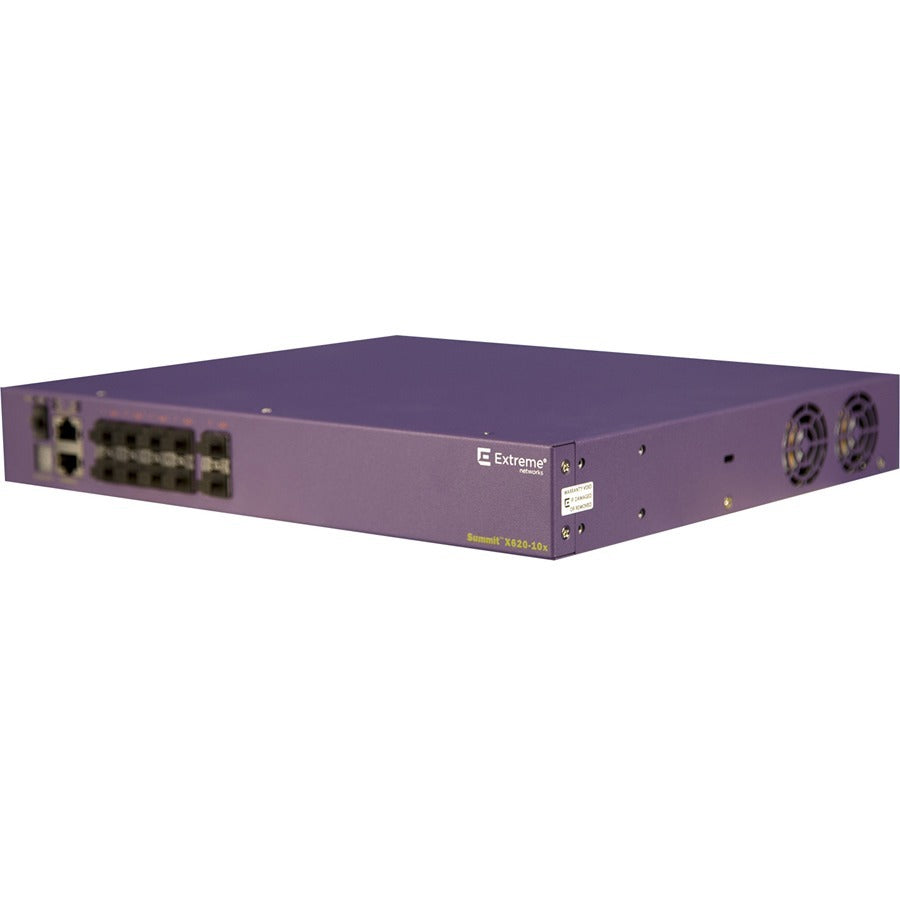

Extreme Networks 10Gb Edge Ethernet Switch

INTELLIGENT 10GB EDGE SWITCHING

The ExtremeSwitching X620 product family is a compact 10Gb Ethernet switch for 10Gb edge applications in a small 1RU form factor. ExtremeSwitching X620 supports sophisticated, intelligent Layer 2 switching, as well as Layer 3 IPv4/IPv6 routing including policy-based switching/routing, Provider Bridges, bidirectional ingress and egress Access Control Lists, and bandwidth control by 8 Kbps granularity both for ingress and egress. The X620 simplifies network operation with the ExtremeXOS modular operating system, which is used among all ExtremeSwitching networking products. The high availability ExtremeXOS operating system provides simplicity and ease of operation through the use of one OS everywhere in the network.

EXTREMESWITCHING X620 MODELS

• X620-16x- 16 100Mb/1Gb/10Gb SFP+ ports using hot-swappable power supplies and fan modules
• X620-16t- 12 100Mb/1Gb/10GBASE-T ports with EEE, 4 ports 100Mb/1Gb/10GBASE-T with EEE shared with 4 ports of 1Gb/10GBASE-X SFP+ using hot-swappable power supplies and fan modules

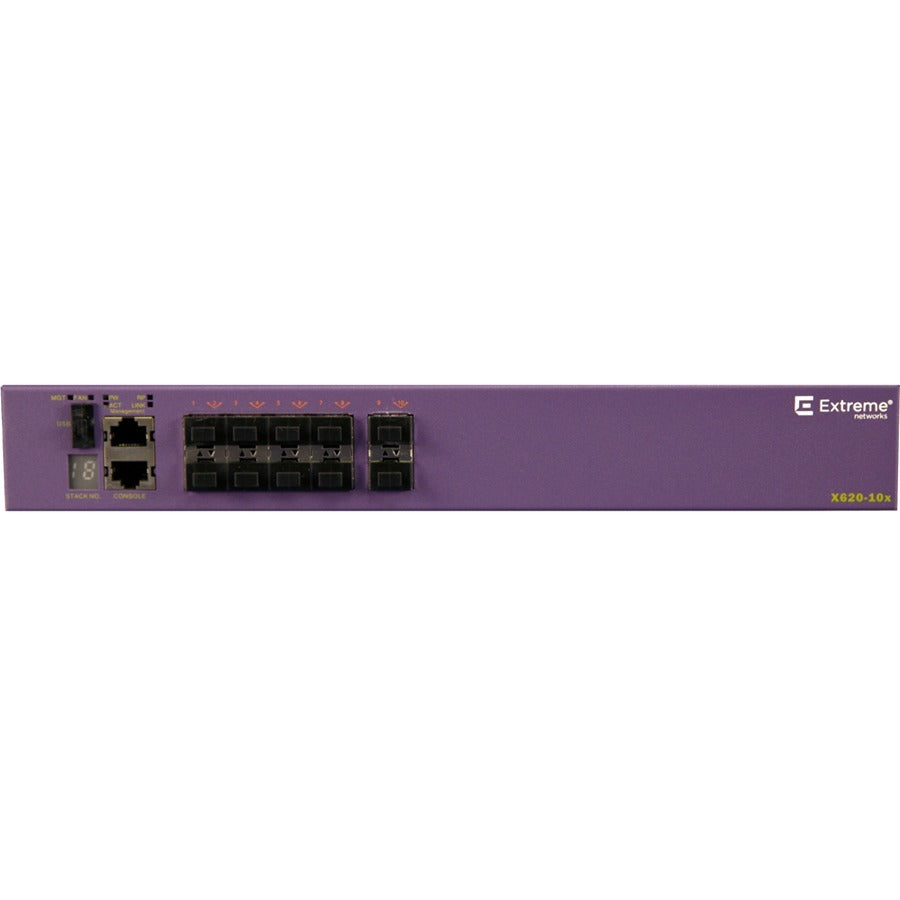

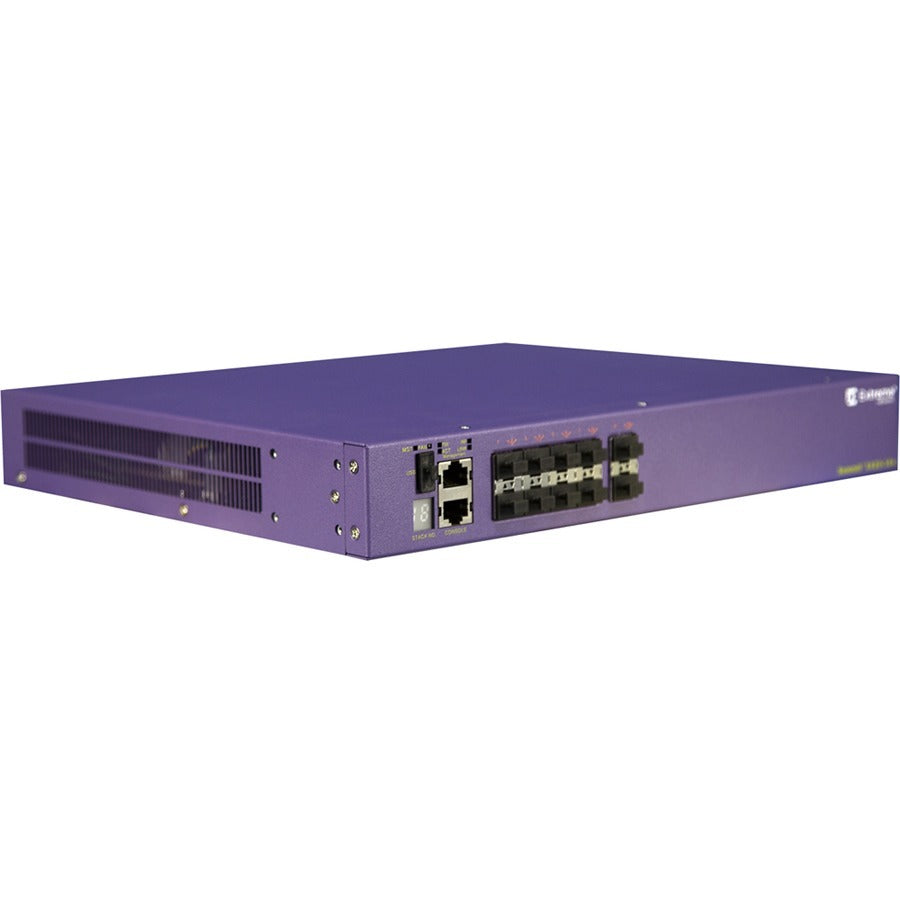

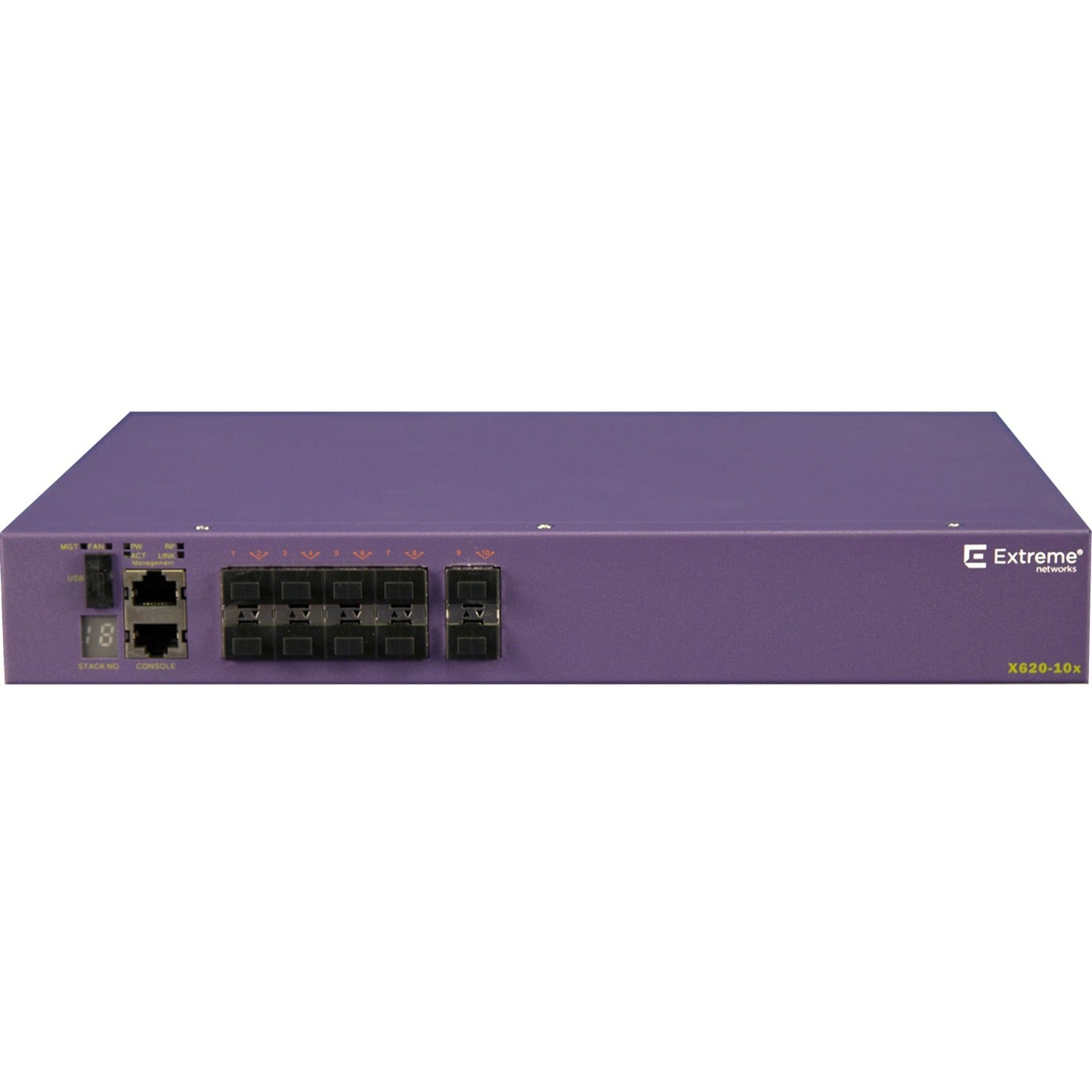

• X620-10x- 10 100Mb/1Gb/10Gb SFP+ ports with integrated power supply and fans
• X620-8t-2x- 8 100Mb/1Gb/10GBASE-T ports with EEE, plus 2 ports of 100Mb/1Gb/10GBASE-X SFP+ with integrated power supply and fans

• Ethernet Switch provides dependable and powerful connectivity for maximum usability
• Built-in power supply to ensure all components are being supplied with accurate voltage
• Supports layer 3 switching for enhanced performance and usability
• Desktop form factor for added reliability and dependability
• Management capability allows maximum efficiency and with unrestricted control
• Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
• Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
