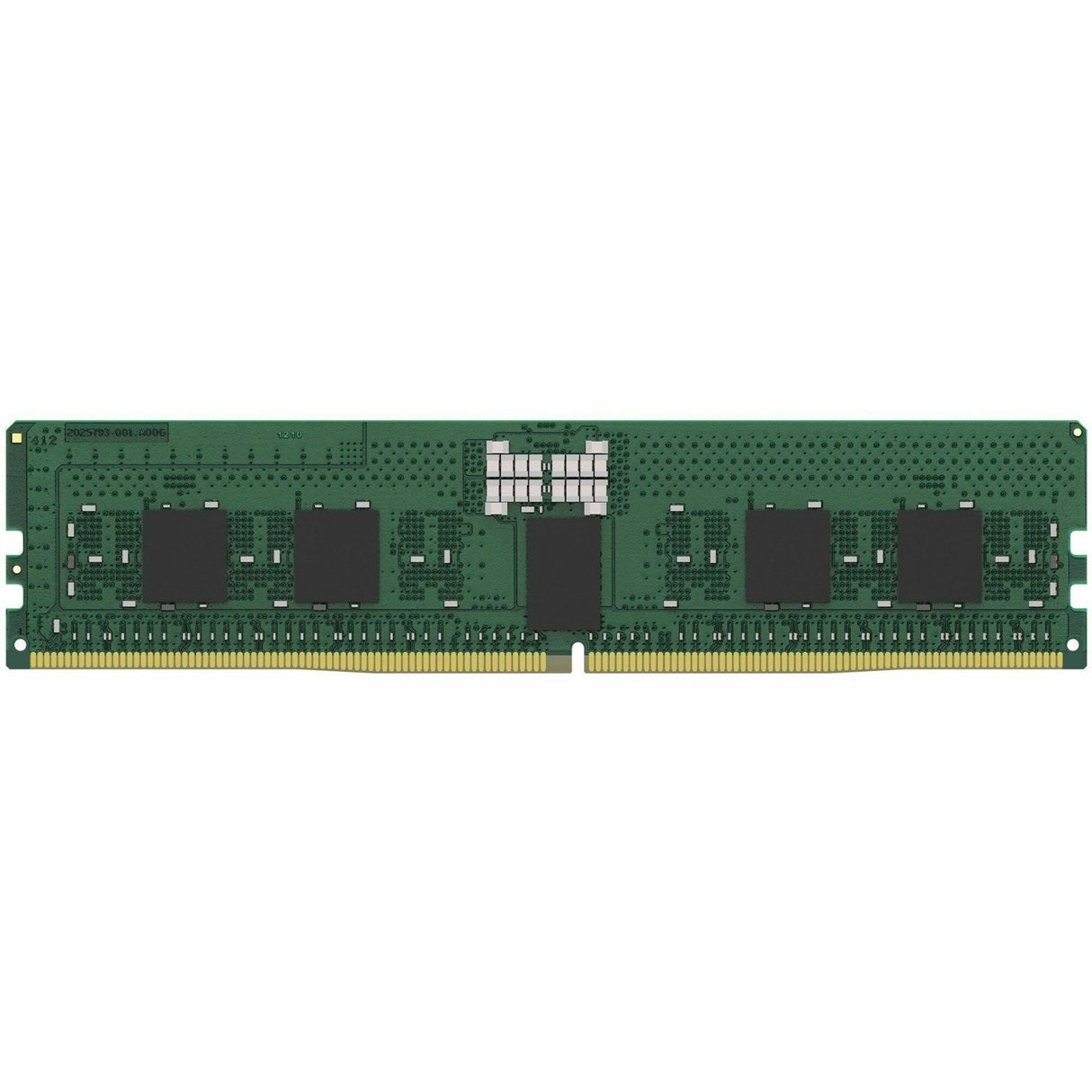

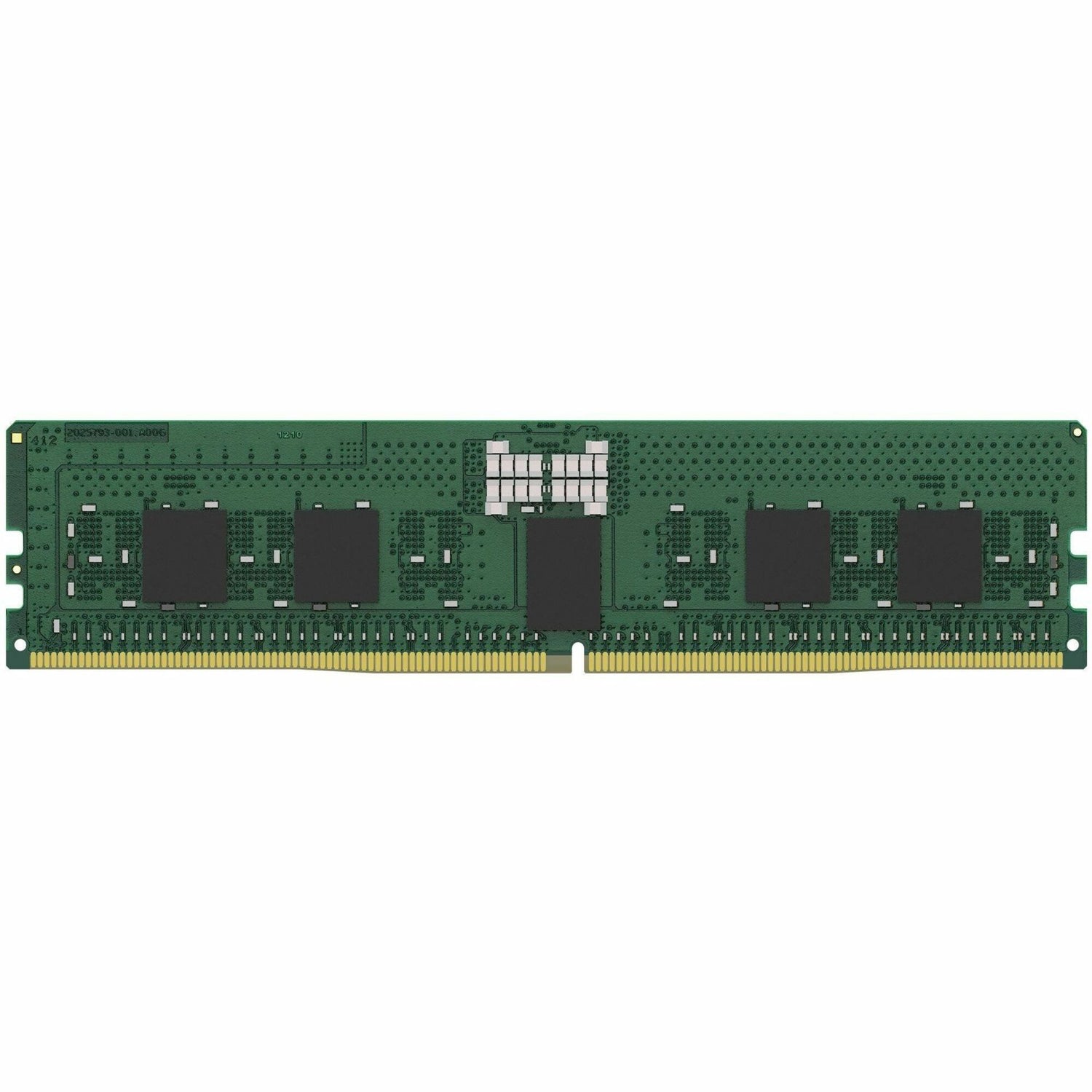

Kingston 32GB DDR5 5600MT/s ECC Registered DIMM

Kingston's KSM56R46BS4PMI-32MDI is a 4G x 80-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx4, ECC, memory module, based on twenty 4G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

FEATURES

• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• x80 ECC (x40, 2 independent I/O sub channels)
• 32 internal banks
• Hard/Soft Post Package Repair
• Sideband access with I3C/I2C
• PCB: Height 1.23" (31.25mm)
• RoHS Compliant and Halogen-Free

• Enables efficient and smooth execution of all your heavy-duty applications with maximum productivity
• Up to 5600 MHz speed for smooth computer performance
• DIMM 32 GB of memory to maintain symmetry with processor and hard drive and bring out the ultimate computing experience
• With DDR5 SDRAM get efficient data transfer rate and enhanced computer's performance
• 288-pin for enhanced, dependable system performance with maximum usability
• CL46 CAS latency for faster, dependable clock cycles which allows quick access and retrieval of data and information
• Server device support for your ram module for maximum productivity and convenience
• DIMM form factor with 288-pin and 32 GB memory size effectively lessens the electrical load on the memory controller to allow maximum feasibility
• Registered signal processing for dependable programmability of the processor for easy optimization of digital signals
