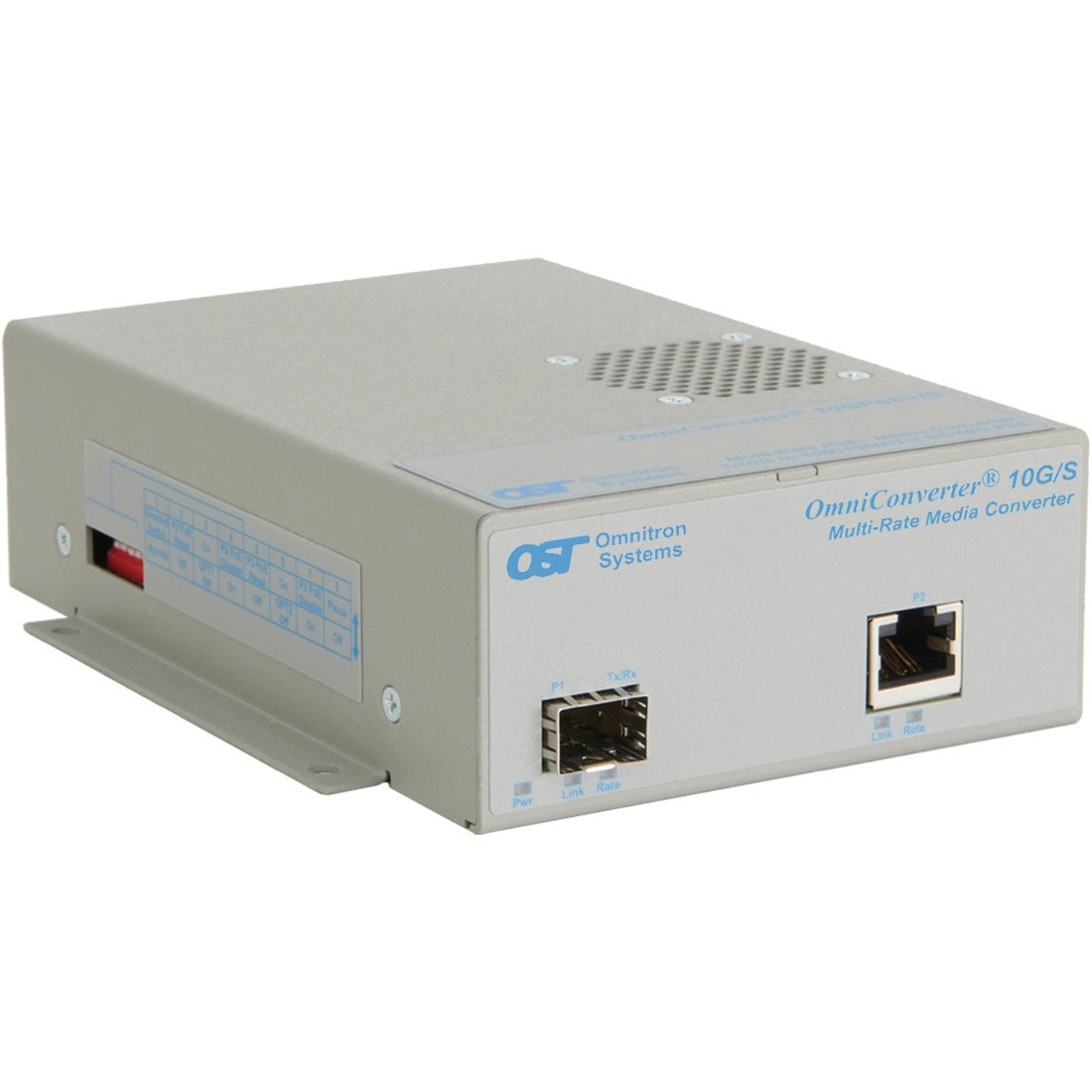

Omnitron Systems OmniConverter 10G/S 9190-0-11-9 Transceiver/Media Converter

The OmniConverter 10G/S are unmanaged 10G Ethernet media converters featuring one 1/10G SFP/SFP+ uplink port and one or two multi-rate RJ-45 user ports.

The RJ-45 user ports support multi-rate speeds of 10Mbps, 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps, supporting frame sizes up to 10,240 bytes.

The 10G/S are well suited for the bandwidth demands imposed by IP cameras, access points and small cell devices on the market today.

The 10G/S feature a Small Form Pluggable (SFP) transceiver receptacle port supporting a variety of copper and fiber transceivers. It supports 10/100/1000BASE-T, 1000BASE-T, 2.5BASE-T, 5GBASE-T and 10GBASE-T copper transceivers and 1G and 10G multimode or singlemode fiber, dual or single-fiber transceivers in standard, CWDM and DWDM wavelengths.

The compact OmniConverter media converters can be tabletop mounted, wall mounted, or DIN-rail mounted using an optional DIN-rail mounting kit (8250-0). They can also be mounted on a 1U 19" rack-mount shelf. They are available with DC input power via terminal connectors or external 100 to 240VAC power adapter.

• Connect different types of media within a network with this single port
• Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between networks and different devices
• With 10/100/1000Base-T network technology, get fast transfer rate and reliable data connection
• The Wall Mountable provides convenient installation
