TRENDnet 1000Base- SX Industrial SFP to RJ45 Multi-Mode LC Module; TI-MGBSX; Up to 550m (1;804 Ft); IEE 802.3z; ANSI Fiber Channel; Data Rates up to 1.25Gbps; LC-Type Duplex; Lifetime Protection

The 1000Base-SX Industrial SFP Multi-Mode LC Module, model TI-MGBSX, is designed to operate within a wide temperature range and is well suited for industrial environments. This SFP module works with standard SFP slots found on industrial switches and fiber converters. The TI-MGBSX is compatible with Duplex LC fiber connector types and supports gigabit multi-mode fiber connections at distances of up to 550 m (1804 ft.).Fiber Applications

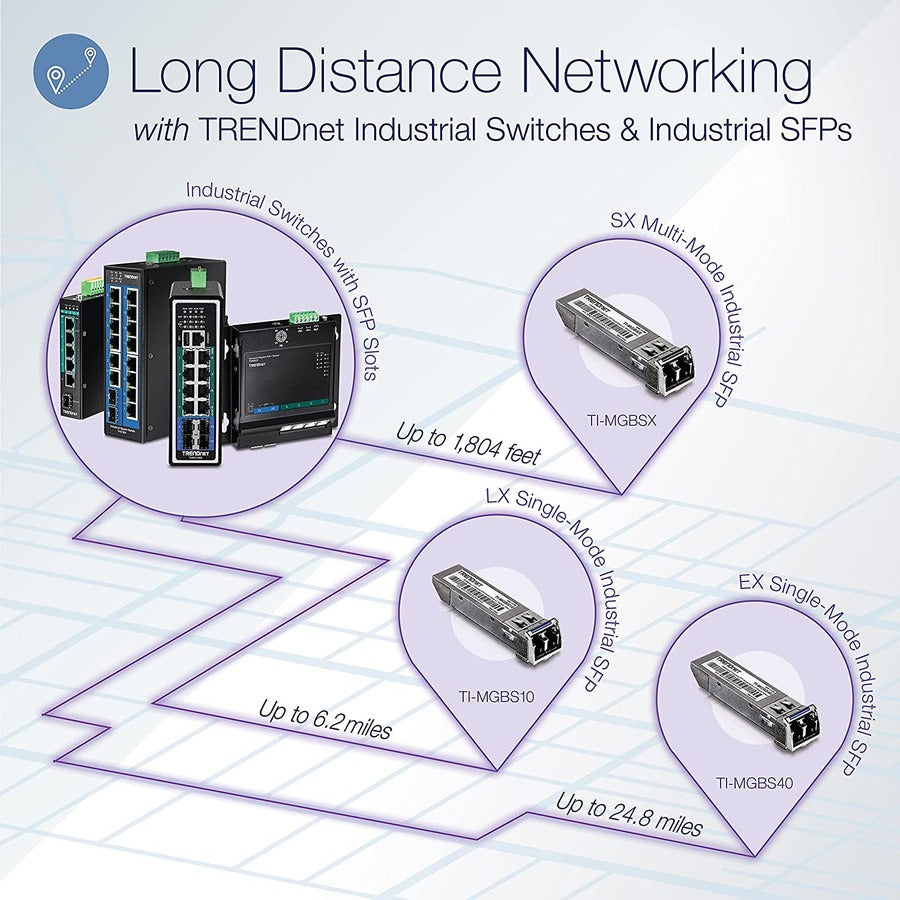

Long distance fiber networking for industrial, manufacturing, and corporate/education campus applications.

Fiber Mode / Distance

Multi-Mode transceiver spans distances up to 550 m (1804 ft.) and supports up to 1.25 Gbps.

Compatibility

Hot-pluggable with a MSA compliant SFP slot and compatible with fiber cables with LC-type duplex connectors.

• Compliant with IEEE 802.3z Gigabit Ethernet
• ANSI Fiber Channel compliant
• Small Form-Factor Pluggable (SFP) and Multi-Source Agreement (MSA) compliant
• Wide operating temperature range of -40°- 85 °C (-40° - 185 °F)
• Supports data rates of up to 1.25 Gbps
• Transmission distance of up to 550 m (1804 ft.)
• Low Electromagnetic Interference (EMI) design
• Supports 850 nm multi-mode network transmissions

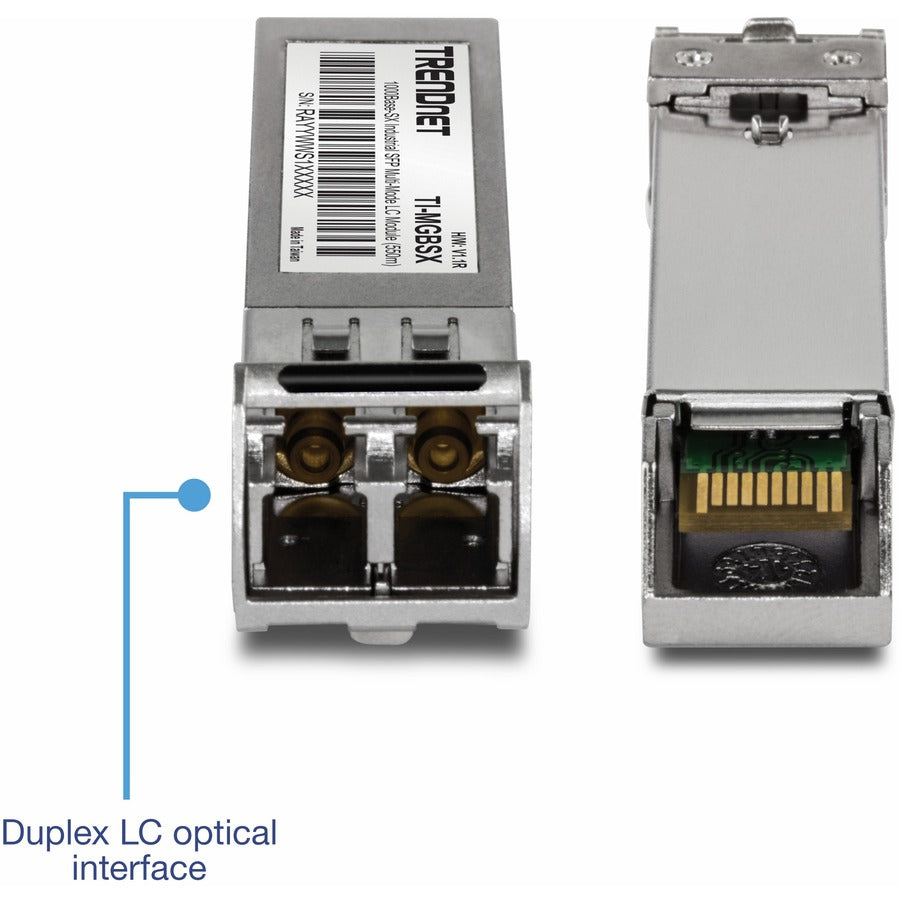

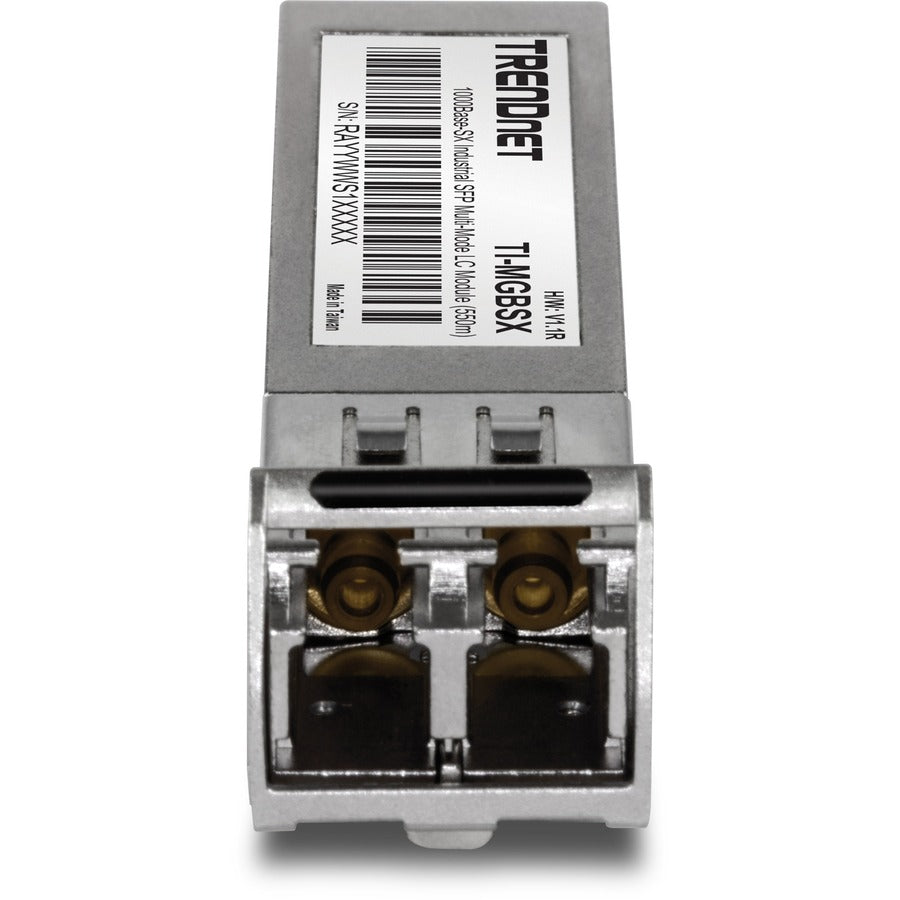

• Duplex LC optical interface
• Low power consumption
• NDAA / TAA compliant
• Lifetime Warranty
