Ubiquiti EdgeSwitch ES-10X Ethernet Switch

Ideal for WISP Applications

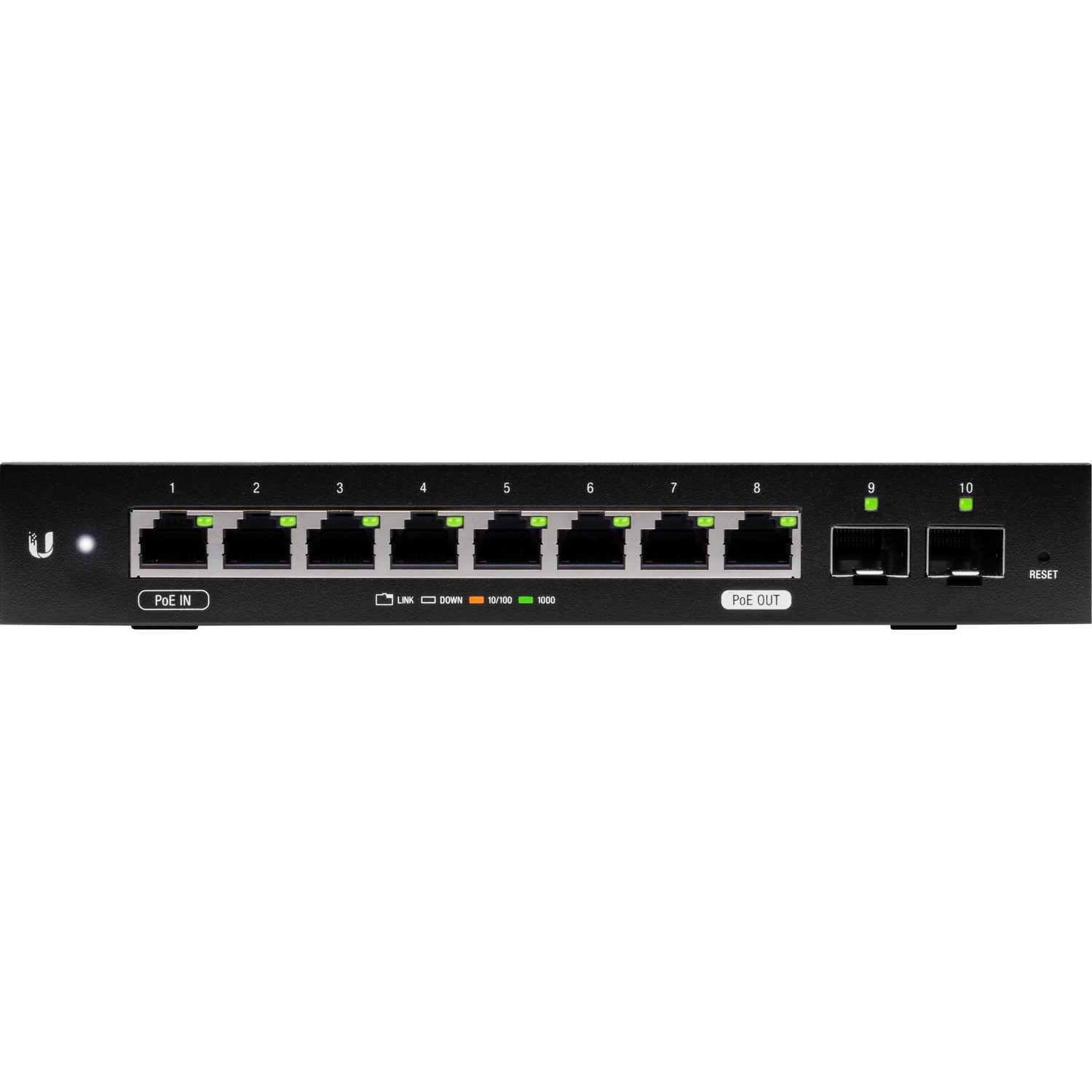

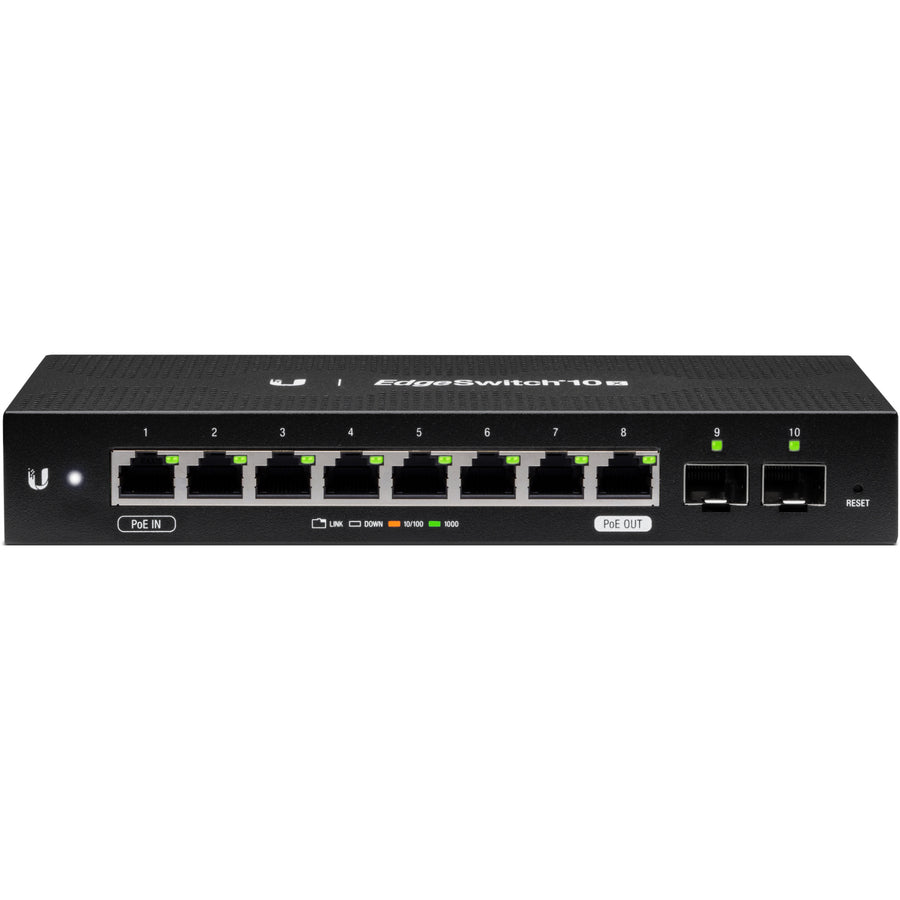

Eight Gigabit RJ45 ports offer copper connectivity with PoE input on port 1 and PoE passthrough on port 8. Two SFP ports offer fiber connectivity

Optimized Power Consumption

The EdgeSwitch 10X consumes 50% less power than the previous-generation EdgeSwitch XP, allowing for passive cooling.

Layer 2 Switching Capacity

The EdgeSwitch 10X supports an extensive suite of advanced Layer 2 switching features and protocols.

Versatile Mounting Options

The EdgeSwitch 10X can be mounted on a wall or in a rack (rackmount accessory, model ER-RMKIT, sold separately).

Simple UI

The new UI is easy to learn and allows you to monitor and configure features through its intuitive graphical user interface.

Centralized Management

The EdgeSwitch 10X is supported and managed by UNMS^™ (Ubiquiti^® Network Management System), a comprehensive controller with an intuitive UI. A single control plane manages registered EdgeMAX^® devices across multiple sites.

• Wall- or Rack-Mountable
• DC Jack Supports Battery Backup with EdgePower TM (sold separately)

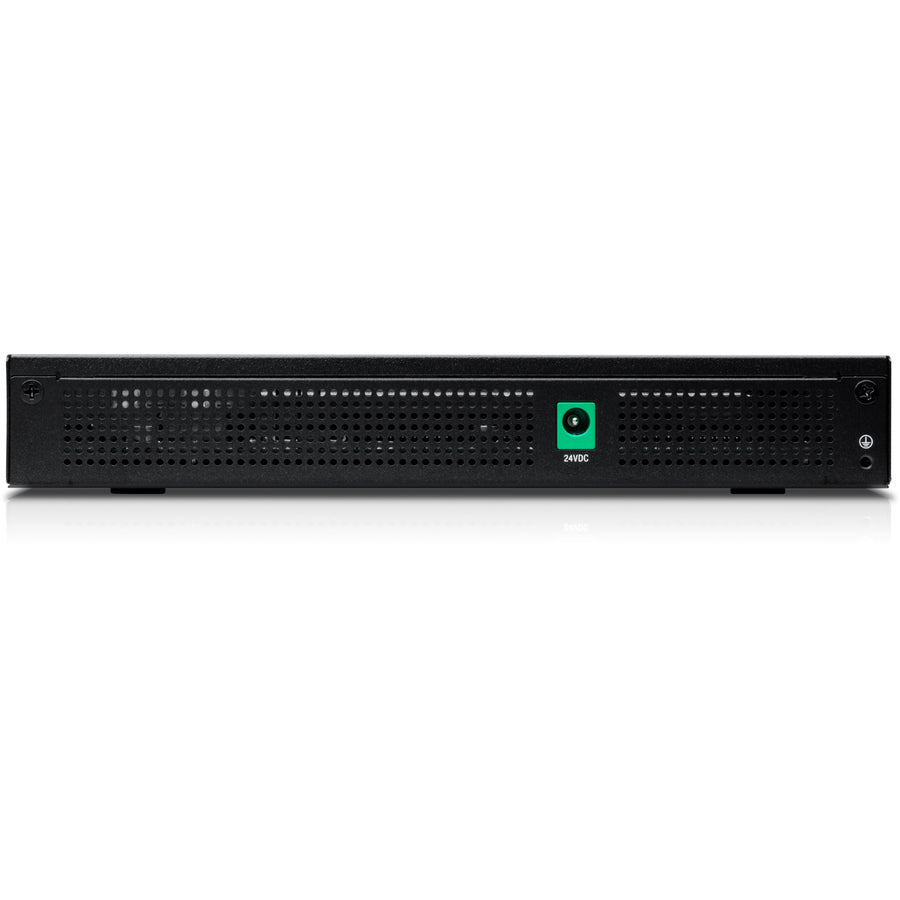

• Powered by 24V Passive PoE or External AC/DC Adapter
• Software-selectable PoE Passthrough on Port 8
• Supports PoE Input on Port 1
• Forwarding Rate: 14.88 Mpps
• Switching Capacity: 20 Gbps
• (2) SFP Ports
• Non-Blocking Throughput: 10 Gbps
• (8) Gigabit RJ45 Ports
